For Toyota CT16V Replacement Turbocharger

Fit

for Toyota HI-LUX 3.0 D4D, 1KD-FTV 3.0L 2005-
for Toyota Landcruiser 3.0 D4D, 1KD-FTV 3.0L 2005-

Part Numbers

17201-OL040; 17201-30160; 17201-30101; 17201-30100; 17201-30160；17201-30110

Turbo Model:  CT16V

Type:Street type

Cooling Type：Water+Oil Cooling

Bearing Type: Journal Bearing / Floating Bearing

Trust bearings: 270 Degrees

Hosepower： Up to 170HP

Compressor ：2 Bolt Flange

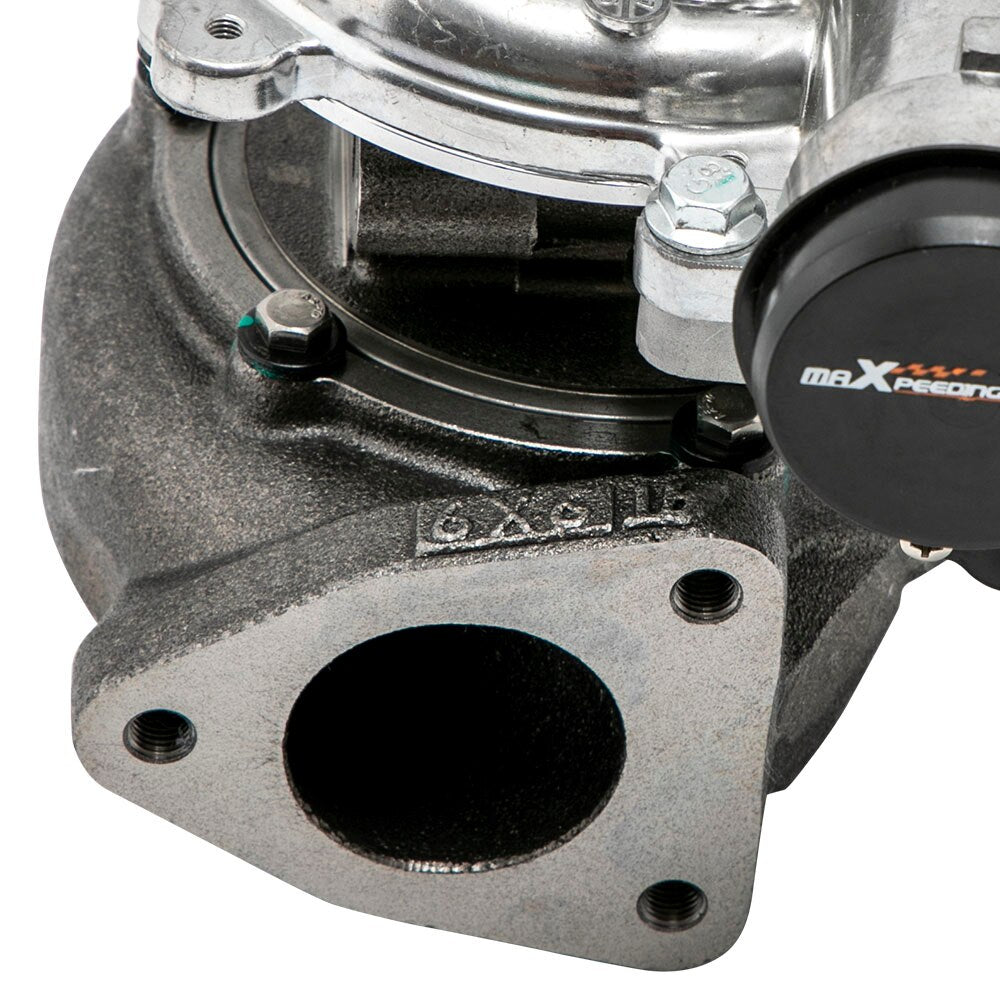

Turbine：3 Bolt Exhaust Downpipe Flange

Compressor Wheel :  6/6 blades

Turbine Wheel : 11 blades

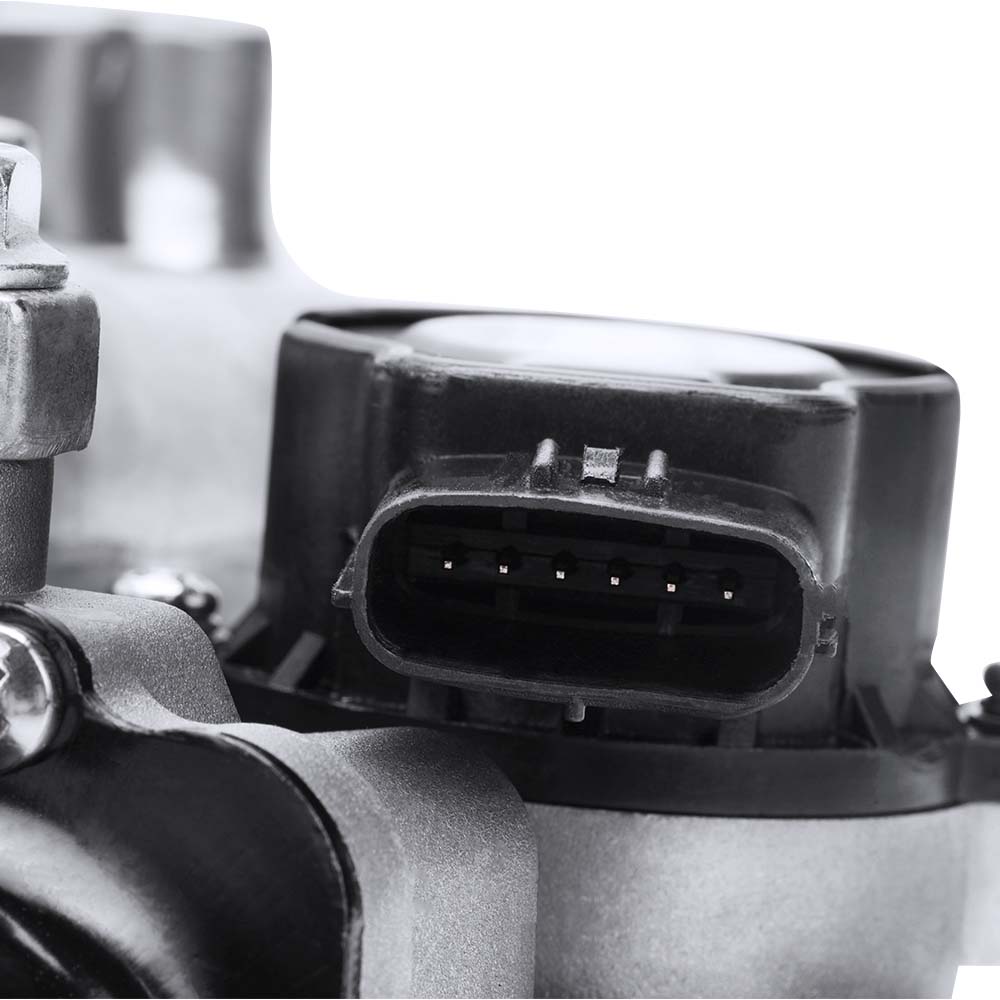

Actuator : Electric Actuator Included

Displacement: 3.0L, 2982 ccm, 6 Cylinders

Feature

Product Material：
1. Turbine housing ：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius
2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
3. Compressor housing：ZL104 aluminum with lightweight

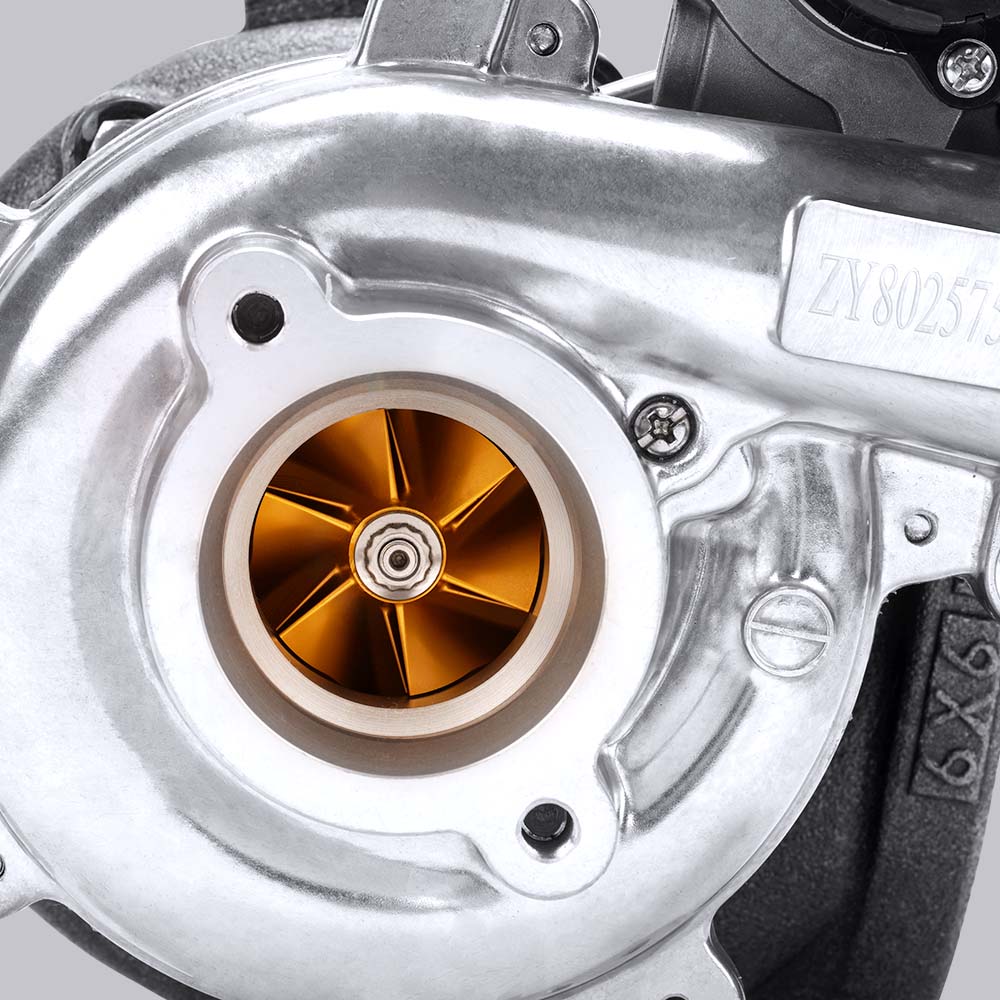

4. compressor wheel/blades：Cast aluminium with good gas tightness and corrosion resistance
Product  Performance：
Product  Performance：
1. OEM-quality and size with little modification
2. Rich Experience In Turbo Production And Own Factory
3. Quality Assurance
4. High Performance Rotor
5. High-Speed Oil Seal Ring
6. Strict Quality Inspection
7. Precision Clearance
8. High-speed Accessories

VNT Turbo are flow tested to ensure the critical minimum-flow stop is at the correct setting before your turbo leaves our workshop. This will ensure your turbocharger will give your vehicle optimum performance and В fuel efficiency from the moment it is fitted.

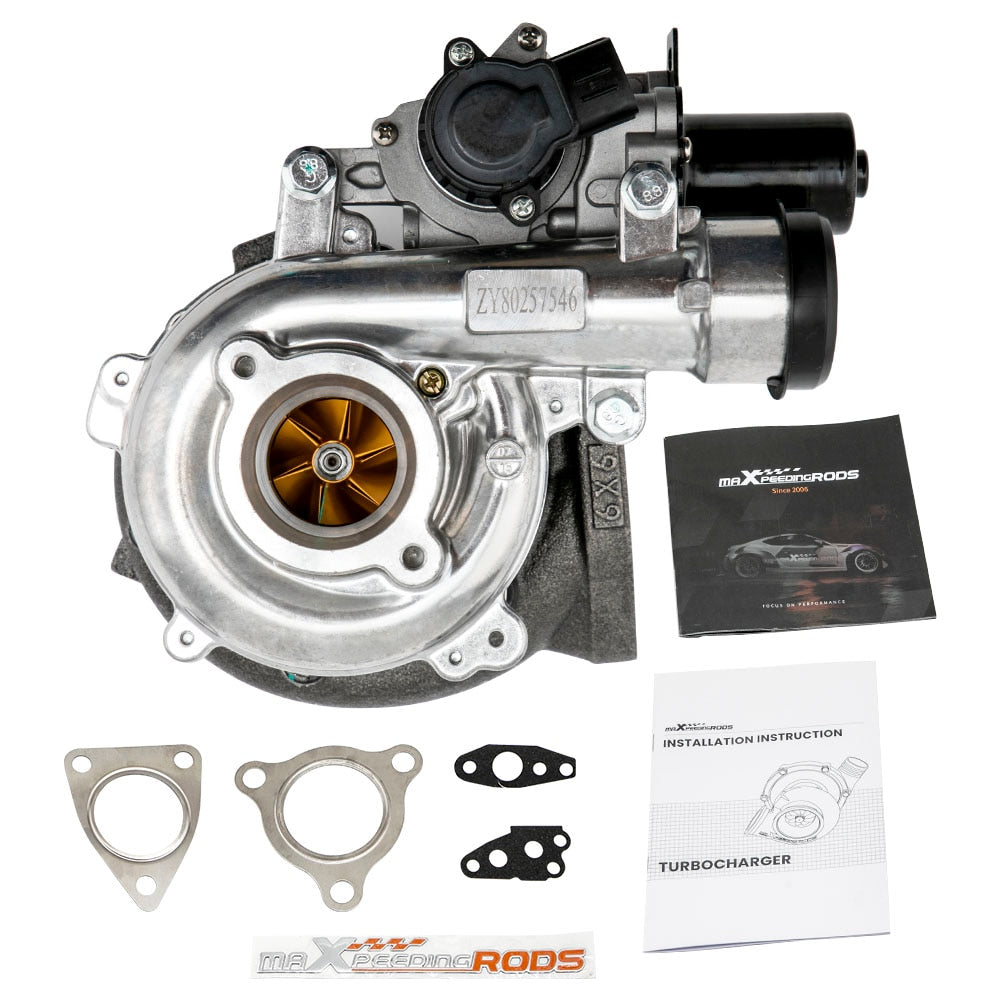

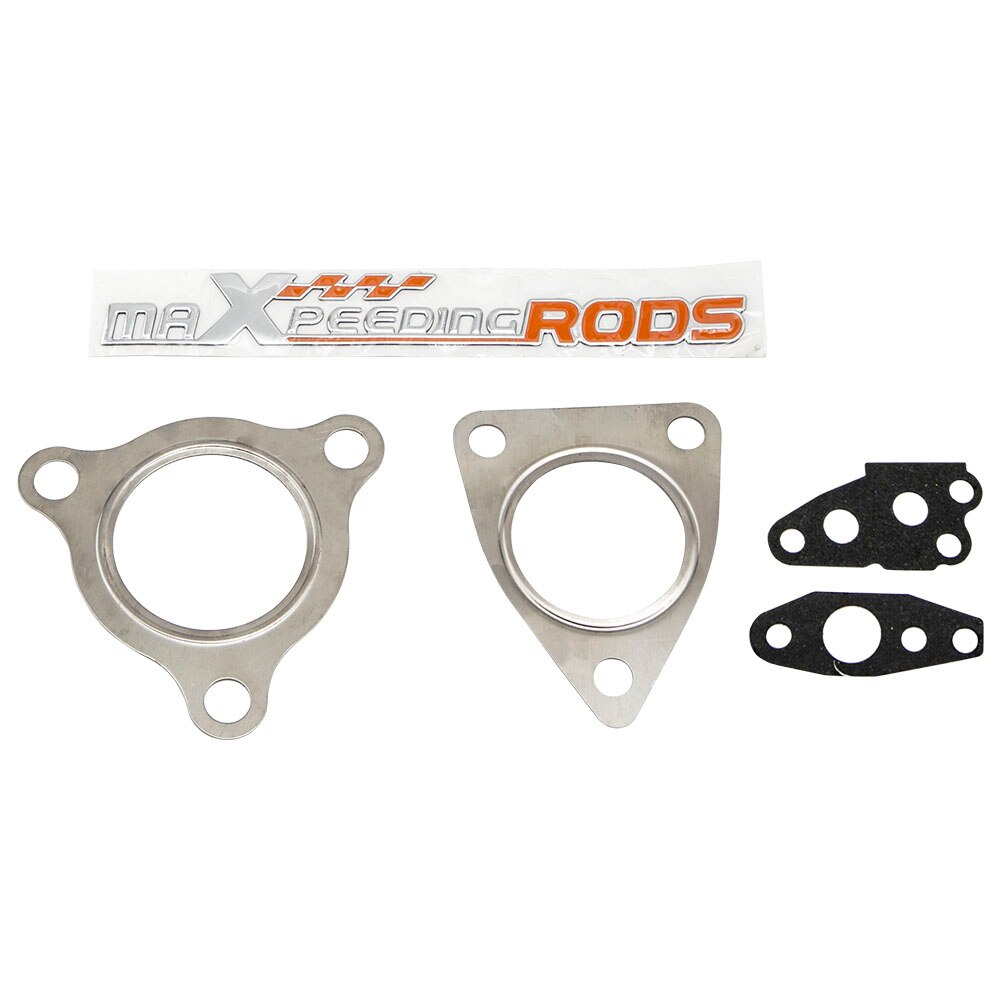

All necessary gaskets included for ease of installation

Note:

* Please confirm your old turbo part number matches up with one of the part numbers above

* Professional installation is highly recommended (No Instruction Included)

* For any needs please contact us.
